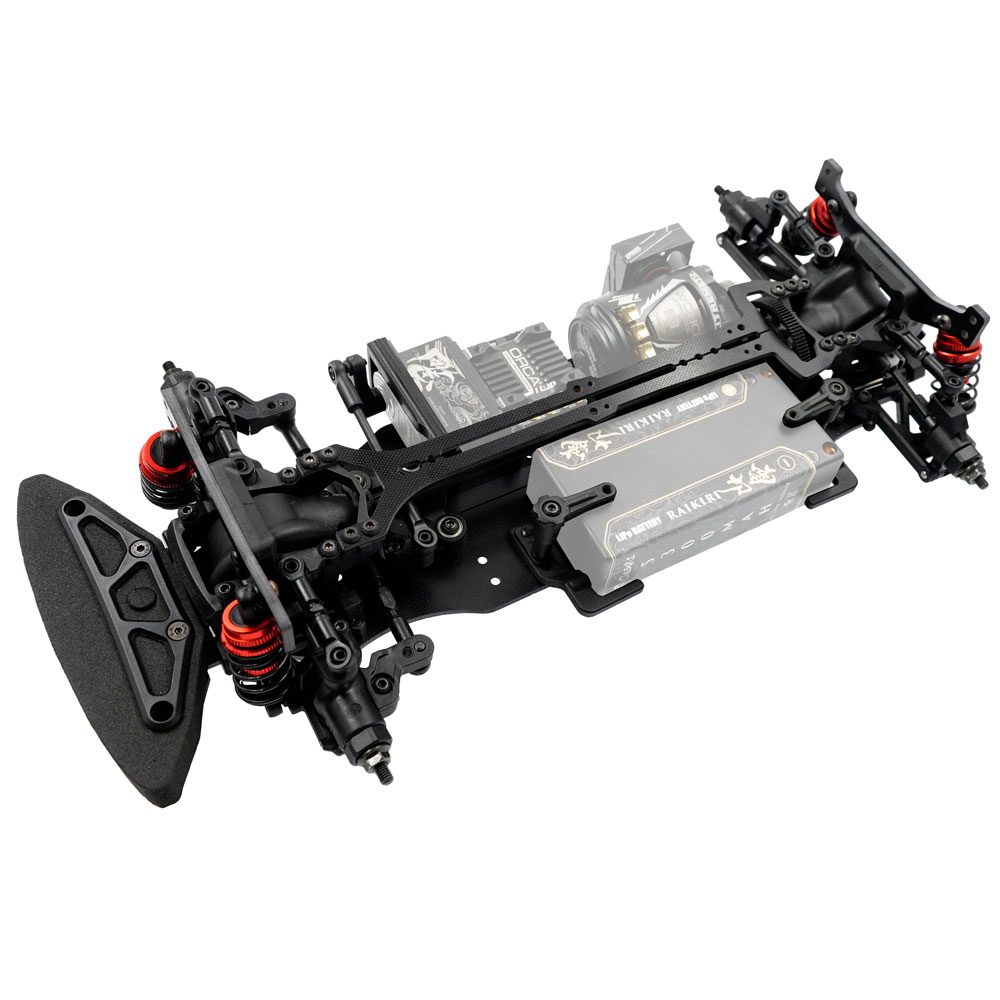

The Arrow AM1S is the economical version of the popular Arrow AT1, offering the same competitive chassis designs now adapted for the M-Chassis platform. Built for performance and reliability, the AM1S delivers a smooth driving experience with a well-engineered 4WD shaft drive system.
Key Features:
- Internal Gear Ratio: 2.353 for optimal power delivery.

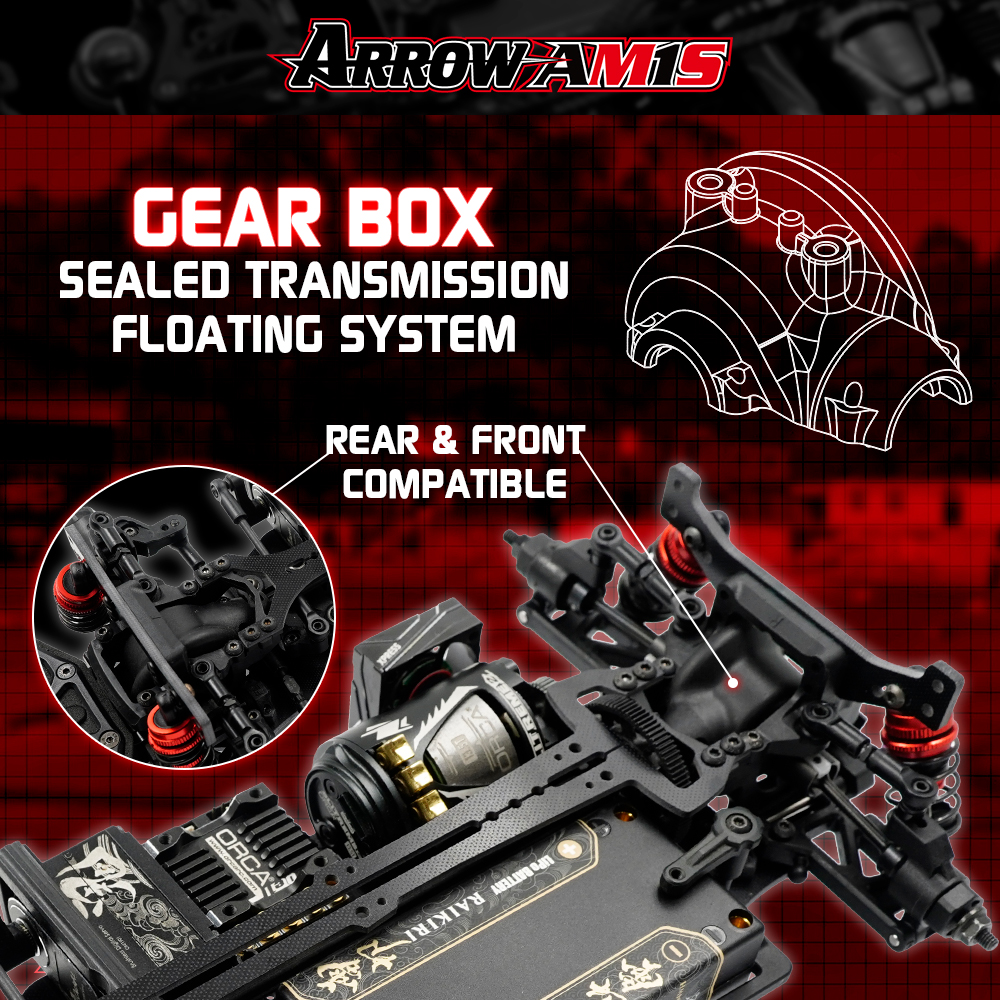

- 4WD Shaft Drive Floating Gear Box System: Ensures efficient and smooth power transfer.
- Sealed Transmission Gear Box: Protects against dirt and debris for longer-lasting performance.

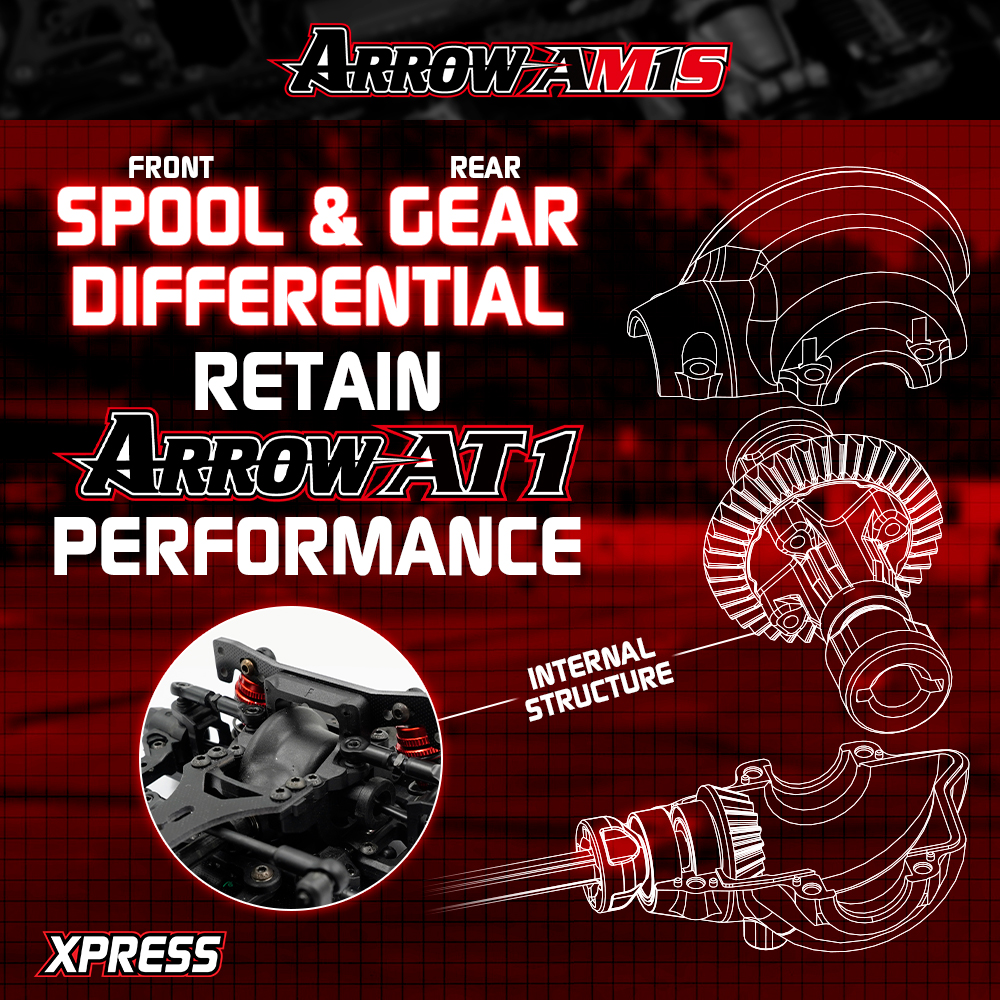

- Front Spool & Rear Gear Differential Unit: Provides excellent handling and traction.
- Lightweight Composite Propeller Shaft: Reduces weight for improved performance.
- Low CG Roll Bar Mount: Lowers the centre of gravity for better handling.

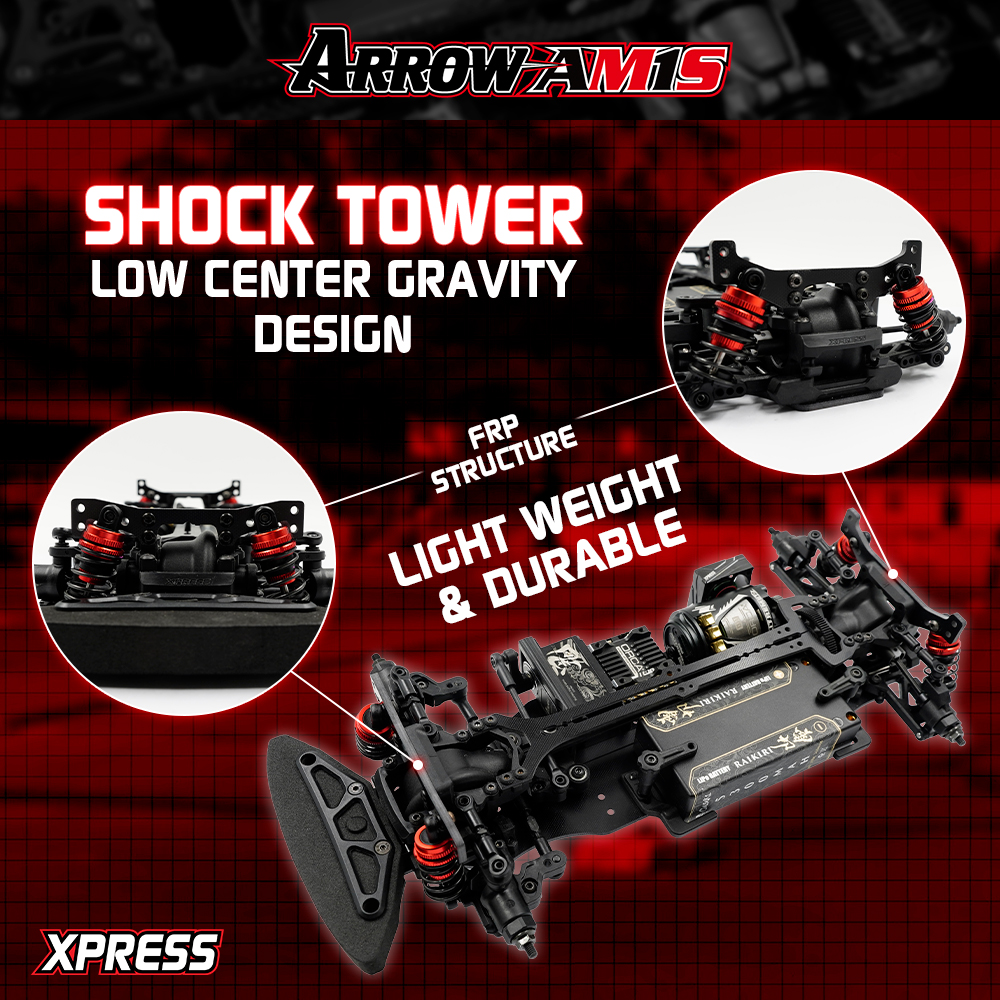

- Low CG Front & Rear FRP Shock Towers: Enhances stability during high-speed cornering.

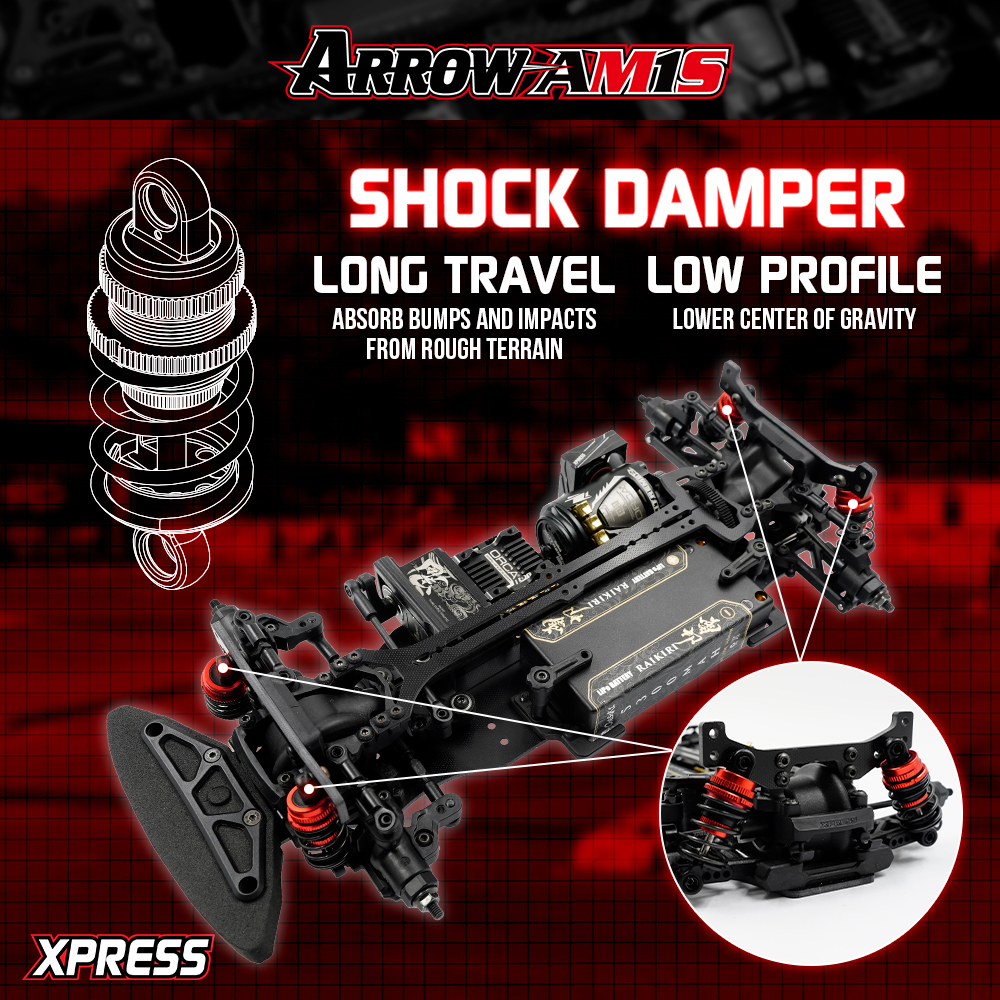

- Low Profile Long Travel Short Shocks: Offers smooth suspension travel for improved control.
- Ball Raced Smooth Steering Bridge: Delivers responsive steering with minimal friction.
- Steel Universal Shafts: Offers strength and durability throughout.
- 2.25mm FRP Main Chassis & 2.0mm FRP Top Deck: Provides a lightweight yet rigid structure.
- Full Turnbuckle Linkages & Ball Bearing Set: Offers precise adjustment and smooth movement.
- Adjustable Battery Position: Allows for fine-tuning of weight distribution.
Specification:
- Type: 1:10 On-road 4WD M-Chassis
- Length: 315mm
- Wheelbase: 225mm
- Track Width: F160mm / R160mm (Approx.)
Included:
With its high-quality components and competitive design, the Arrow AM1S is perfect for RC enthusiasts seeking a reliable and affordable 4WD touring car kit.
