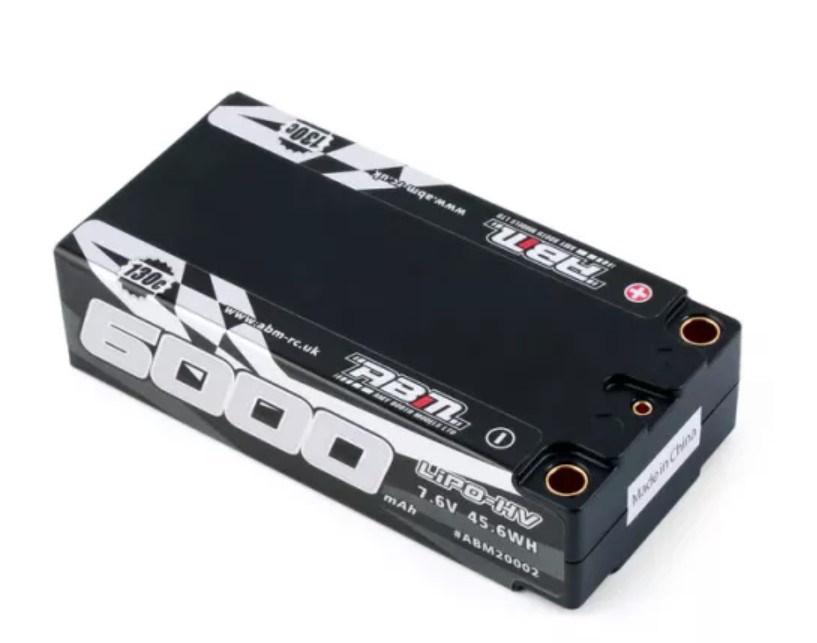

ABM-RC LiPo Race Battery - 6000mAh 7.6V 130C 5mm - BRCA Approved Features:
- Configuration: Shorty Full Size Style
- Battery pack weight: 225 ± 9g
- Length: 96mm +0/-1mm
- Width: 46.8mm +0/-1mm
- Thickness: 24.9mm +0/-1mm
- Casing material: ABS+PC
- Casing nominal thickness: 1.0mm
- Casing sealing: Sonic-welding
- Discharge point: dia. 5mm tubes (positive / negative terminals)
- Charging port: dia. 2mm tube balance
Ratings
- Nominal Voltage: 7.6V
- Nominal Capacity: 5900-6100mAh
- Nominal Impedance: .9-1.3 mOhm per cell
- Charging method: CC/CV mode (high quality LiPo chargers only)
- Charge cutoff voltage: 8.40V ±0,05V
- Charging current: 6.0 amps(typical)
- 2C charging possible, with special attention for accurate cut off
- Discharge cutoff voltage: 6.2V ±0,05V
- Discharge continuous: 65c
- Discharge pulse (max): 130c (less than 6sec. for each pulse)
- Discharge Temp range: -20~+60 deg-C
- Charging Temp range: 0~ +45 deg-C
- Storage Temperature: -20~+45 deg-C
- Storage Humidity: 65 ±20% RH
